Nurse call system

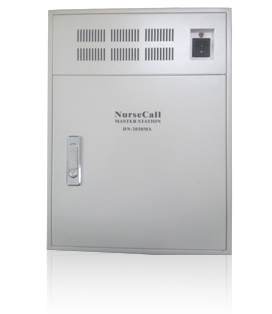

It is a device that can control all functions of the system.
It consists of controller, power supply, and terminal connection section.
Controlled by microprocessor and program, the system is very fast and accurate.
When needed, UPS system can be connected with this so that the total system can be operated without any disturbance like blackout.
In case blackout happens, It is manufactured with special flash memory to prevent data loss.
All functions of the system can be performed smoothly thanks to high-end SMPS which supplies power to it.
DN-5532MA is especially for surgery room control.

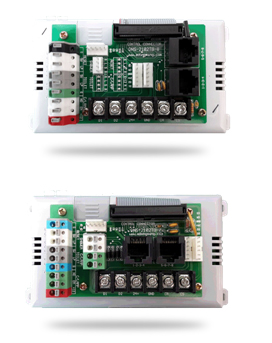

It is a device that connects nurses' station with all sub-stations.
It is required one per a room(TB-065) and one per two rooms(TB-065A).
TB-065 can cover eight nurse callers and three sub-stations such as emergency caller, presence switch, and corridor light. TB-065A can cover 4 nurse callers and two emergency callers, and 2 corridor lights except presence switch.
Compression joint terminal is used in this device.
Screwless terminal used in other terminals makes installation and management easier.
Control circuit and terminals are separated so you can only change the circuits If there's any breakdown in it.
The exterior covering is made of steel so it can block any noise.
Dimensions : 146mm(W), 78mm(H), 49mm(D)
