  • Electric Operating Table

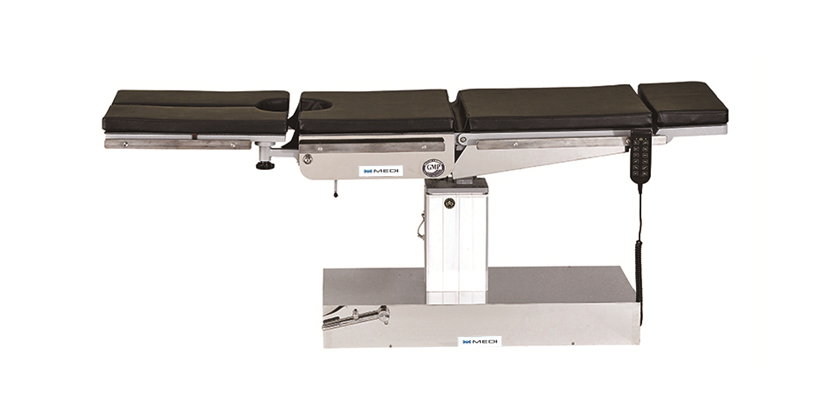

ELECTRIC OPERATING TABLE MD-750
Specifications
DIMENSION STANDARD ACCESSORY
Table size 1960mmL¡¿480mmW Arm rest 1 pair
Drive type single drive Shoulder supports 1 pair
Height adjustable 750mmH / 950mmH Knee crutches 1 pair
Weight 190kg Mattress 1 set
Motor voltage DC 24v Drain tray 1 pc
Main connection AC 220v Chest & waist supports
Hand switch 1pc

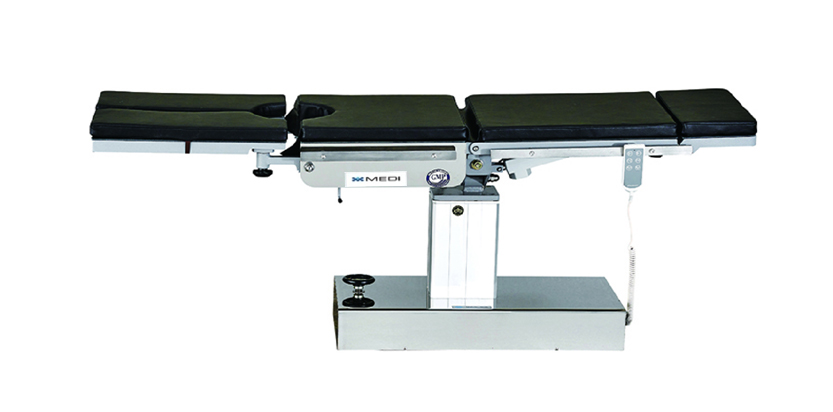

ELECTRIC OPERATING TABLE MD-7501
Specifications
DIMENSION STANDARD ACCESSORY
Table size 1960mmL¡¿480mmW Arm rest 1 pair
Drive type single drive Mattress 1 set
Height adjustable 750mmH / 950mmH Drain tray 1 pc
Weight 140kg Hand switch 1pc
Motor voltage DC 24v
Main connection AC 195~240V
UPS FUNCTION(OPTIONAL)
Common Specifications [MD-750,MD-7501]

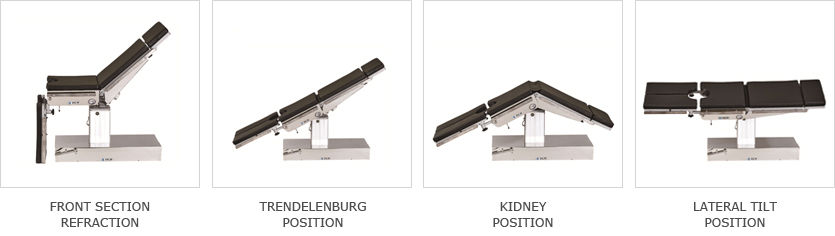

POSITION
Lateral tilt position 26¡Æ both sides
Kidney position 126¡Æ
Back section refraction up 56¡Æ down 27¡Æ
Head section refraction up 26¡Æ down 90¡Æ
Leg section refraction up 46¡Æ down 90¡Æ
