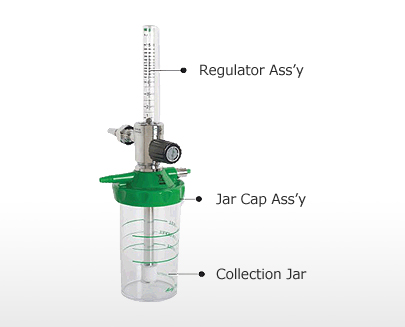

FLOWMETER WITH HUMIDIFIER | BUBBLE TYPE BB-015

Oxygen supply level is regulated by Knob, rotation of which starts with "click' sound, that differs from other similar products. It is done to avoid the overflow of the oxygen to the patient.

  • Humidification Method : Gas Powered Type
  • Medical oxygen with purity of 99.5% or higher
  • Standard Pressure : 393 kPa (4.0”¾0.5 kgf/cm2)
  • Use Pressure : 345 kPa (3.5 kgf/cm2)
  • Maximum Supply Flow rate : within 60 N LPM
  • Humidifier (At 37”ĘC) : 25% at Min. 10 mg/L
  • Patient Tubing : 3/16" to 5/16" I.D. Tubing
  • Safety Valve : The operation at 58.6 kPa por

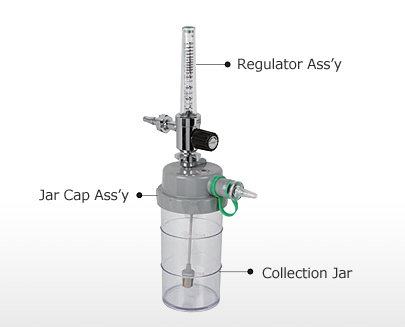

FLOWMETER WITH HUMIDIFIER | BUBBLE JET TYPE BJ-015

Dual action reusable bubble or aerosol humidifier for choice of humidification levels. Provide high out-put unheated aerosol to increase relative Humidity for respiratory therapy.

  • Humidification Method : Gas Powered Type
  • Medical oxygen with purity of 99.5% or higher
  • Standard Pressure : 393 kPa (4.0”¾0.5 kgf/cm2)
  • Use Pressure : 345 kPa (3.5 kgf/cm2)
  • Maximum Supply Flow rate : within 60 N LPM
  • Humidifier (At 36.5”ĘC)
  • Bubble Mode : 27% at 10.3 mg/L
  • Jet Mode : 41% at 17.5 mg/L
