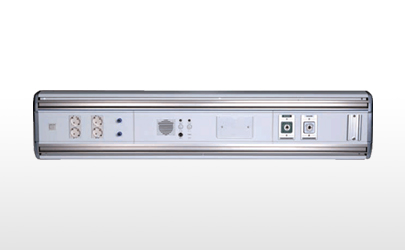

Bed head unit

MD-BHU-A

This type is designed to compose medical gas (oxygen, air, vacuum, N20) and its length can be changed according to customer Request.

  • Nurse call option can be requested by customer.
  • Length of standard : 1,280mm
  • Main frame : Aluminum profile 3.0t anodizing finished.
  • Upper & Lower accessory rail
  • Cover : Aluminum profile 2.3t
  • Panel : aluminum profile 2.3t baked painting

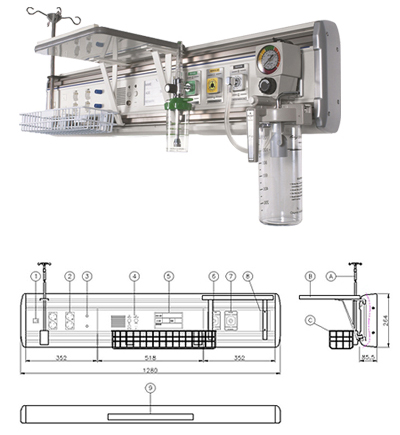

No. Medical Gas Outlet Pressure Max.
1 Fluorescent Switch Standard 1
2 220V Receptacle 45 Duplex 2
3 Ground Terminal 20A Duplex 1
4 Nurse Call System Option 1
5 Name Plate Standard 1
6 Oxygen Gas Outlet Pin Index Push Type 1
7 Vacuum Outlet Pin Index Push Type 1
8 Slide Base Aluminum กพ2.3 1
9 Fluorescent Lamp 220V 20W 1
A Infusion Pump Holder Option 1
B Sliding Monitor Shelf Option 1
C Utility Basket Large Option 1
