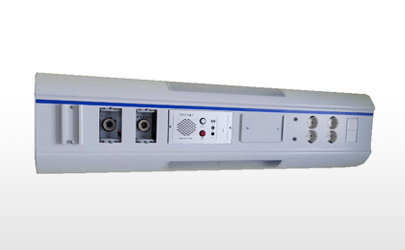

Bed head unit

MD-BHU-C

This type is designed to compose medical gas (oxygen, air, vacuum, N20) and its length can be changed according to customer Request.

  • Length of standard : 1,100mm
  • Main frame : Aluminum profile 3.0t anodizing finished.
  • Panel : aluminum profile 2.3t baked painting
  • Cover : Aluminum profile 2.3t
No. Medical Gas Outlet Pressure Max.
1 Slide Base Aluminum ±2.3 1
2 Vacuum Outlet h Pin Index Push Type 1
3 Oxygen Gas Outlet Pin Index Push Type 1
4 Nurse Call System Option 1
5 Name Plate Standard 1
6 Ground Terminal 20A Duplex 1
7 220V Receptacle 45 Duplex 2
8 Fluorescent Switch Standard 1
9 Fluorescent Lamp 220V 20W 1
